DJI F450 Flame Wheel Multirotor - First Person View (FPV) Setup

(date: November 01, 2012)

Click here to view my gallery!

Since I did not know too much about FPV, I started off with a package from readymaderc.com. The package came out to be a little cheaper than buying everything separately and most importantly of all, it included everything in need to get started.

What I liked about this package it that is lets you customize the package. For example I was about to choose not to included camera because I plan to use my GoPro instead. Then I wanted to upgrade my antennas and add on a ImmersionRC EZOSD.

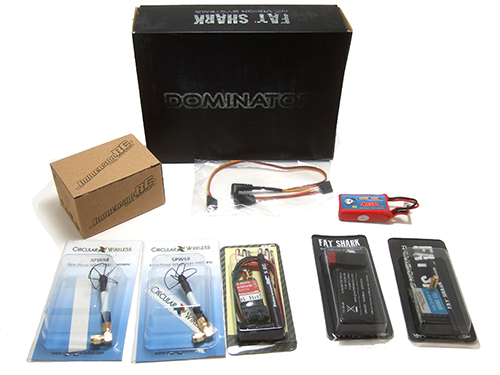

  • Custom Goggles FPV Starter Package:
  • 5.8GHz Antennas - Circular Wireless Skew Planar Wheel Omni Combo
  • Video Transmitter - ImmersionRC 600mW 5.8GHz
  • Video Goggles - FatShark Dominators
  • OSD - ImmersionRC EZOSD
  • ImmersionRC GoPro HD A/V cable
  • ImmersionRC 3S 460mAh 35C Tx lipo
  • FatShark 1000mah Lipo

UPDATE:

I ended up returning everything because I did not like it worked. Or you can say I suck at flying and I was not confident enough to fly with the goggles on.

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

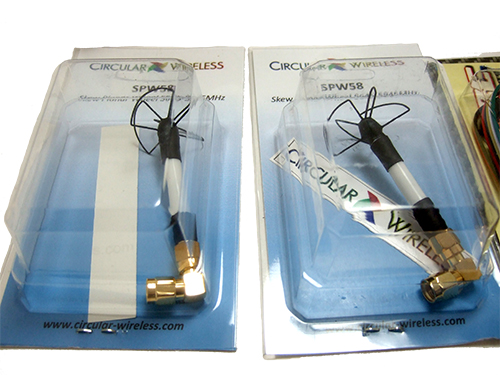

5.8GHz Antennas - Circular Wireless Skew Planar Wheel Omni Combo

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

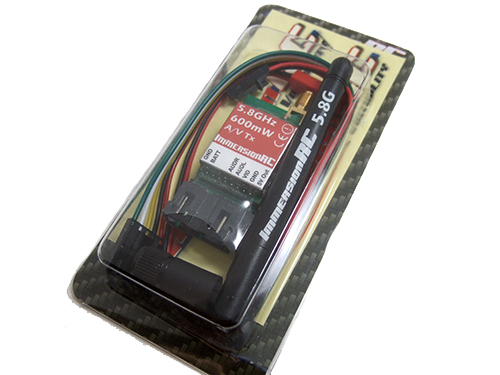

Video Transmitter - ImmersionRC 600mW 5.8GHz

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

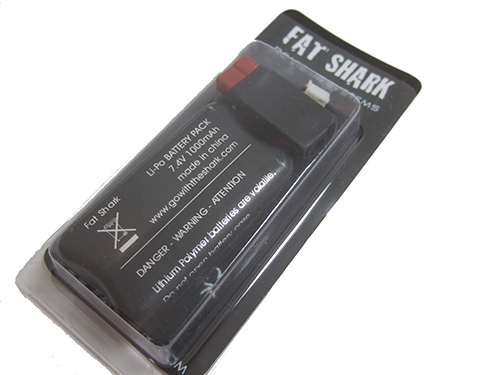

1000mah 2s Lipo to power up the goggles

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

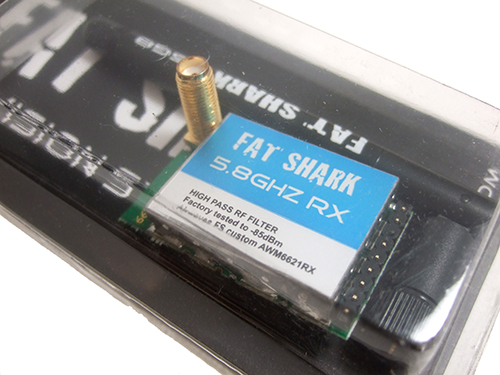

5.8ghz RX module that plugs in the google

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

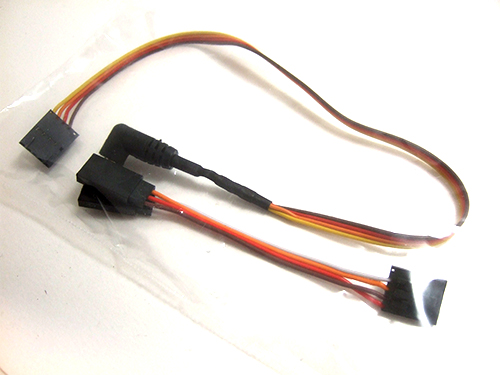

Cables to plug in to the GoPro and ImmersionRC EZ OSD

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

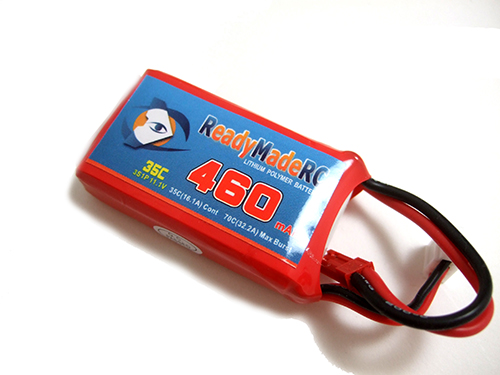

3S 460mAh 35C Tx lipo to power up the FPV system - ImmersionRC 3S 460mAh 35C Tx lipo

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

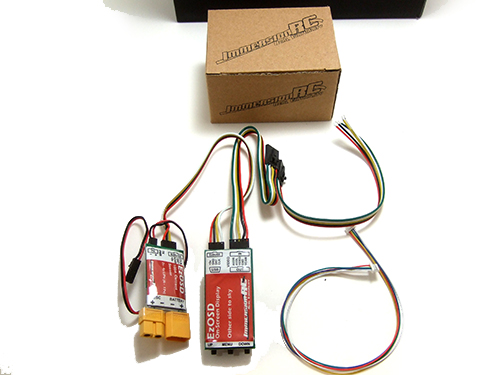

OSD - ImmersionRC EZOSD

The only this so far that I was annoyed about the OSD is that the pictuer on readmyrc showed a pair of dean plugs on

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)

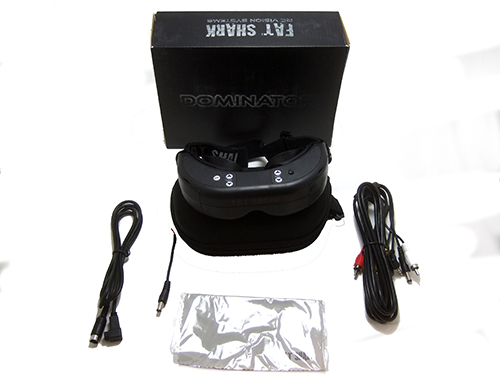

Video Goggles - FatShark Dominators

DJI F450 Flame Wheel Multirotor -  First Person View Setup (FPV)
